THERMATIC INSTRUMENTATION & CONTROLS

TECHNICAL SPECIFICATIONS

• Pressure ranges from 1.6 kPa abs up to 10000 kPa abs (0.23206 to 1450.38 psi abs)

• Accuracy: ±0.2% (option: ±0.1%)

• Stability: ±0.2% of URL for 10 years

• Output: 4-20 mA / HART or Foundation Fieldbus

• Programmable output linearization in up to 14 points

• Burnout current functionality compliant with NAMUR NE43

• Dry calibration without reference pressure

TECHNICAL SPECIFICATIONS

 • Pressure ranges from 0.32 kPa up to 50000 kPa (0.04641 to 7251.89 psi)

• Accuracy: ±0.065% for differential and gauge pressure models and ±0.2% for absolute pressure models

• Stability: ±0.2% of URL for 10 years

• Output: 4-20 mA / HART or Foundation Fieldbus

• Programmable output linearization in up to 14 points

• Burnout current functionality compliant with NAMUR NE43

• Dry calibration without reference pressure

TECHNICAL SPECIFICATIONS

•Pressure ranges from 0.1 kPa up to 20000 kPa (0.0145 to 2900.75 psi)

•Accuracy: ±0.065% (option: ±0.04%)

•Stability: ±0.1% of URL for 10 years

•Output: 4-20 mA (linear or square root) / HART or Foundation Fieldbus

•Programmable output linearization in up to 14 points

•Burnout current functionality compliant with NAMUR NE43

•Low flow cut-off

•Dry calibration without reference pressure

TECHNICAL SPECIFICATIONS

• Pressure ranges from 10 mmH2O up to 300000 mmH2O (0.3937 to 11811 inH2O)

• Accuracy: ±0.165% (option: ±0,1%)

• Stability: ±0.2% of URL for 10 years

• Output: 4-20 mA / HART or Foundation Fieldbus

• Programmable output linearization in up to 14 points

• Burnout current functionality compliant with NAMUR NE43

• Dry calibration without reference pressure

  TECHNICAL SPECIFICATIONS

  • Pressure ranges from 1.3 kPa up to 50000 kPa (0.18855 to 7251,89 psi)

• Accuracy: ±0.065% (option: ±0.04%)

• Stability: ±0.1% of URL for 10 years

• Output: 4-20 mA / HART or Foundation Fieldbus

• Programmable output linearization in up to 14 points

• Burnout current functionality compliant with NAMUR NE43

• Dry calibration without reference pressure

TECHNICAL SPECIFICATIONS

  •Pressure ranges from 8.125 kPa abs up to 3000 kPa abs (1.1784 to 435.11 psi abs)

•Accuracy: ±0.2%

•Stability: ±0.2% of URL for 10 years

•Output: 4-20 mA / HART or Foundation Fieldbus

•Programmable output linearization in up to 14 points

•Burnout current functionality compliant with NAMUR NE43

•Dry calibration without reference pressure

TECHNICAL SPECIFICATIONS

•Pressure ranges from 8.125 kPa up to 10000 kPa (1.1784 to 1450.38 psi)

•Accuracy: ±0.1%

•Stability: ±0.2% of URL for 10 years

•Output: 4-20 mA / HART or Foundation Fieldbus

•Programmable output linearization in up to 14 points

•Burnout current functionality compliant with NAMUR NE43

•Dry calibration without reference pressure

TECHNICAL SPECIFICATIONS

•Pressure ranges from 8.125 kPa up to 10000 kPa (1.1784 to 1450.38 psi)

•Accuracy: ±0.1% for FKP and ±0.2% for FKH

•Stability: ±0.2% of URL for 10 years

•Output: 4-20 mA / HART or Foundation Fieldbus

•Programmable output linearization in up to 14 points

•Burnout current functionality compliant with NAMUR NE43

•Dry calibration without reference pressure

FEATURES:

•Low maintenance and operating cost with no gas sampling device and few parts to be replaced

•Superior long term stability

•Fast response within 2 seconds

•Tolerant to high temperature and high dust concentration

•Low power consumption

•Compliant with RoHS directive (2011/65/EU

FEATURES:

 •Double-beam laser for two component analysis of CO and O2

•Low maintenance and operating cost with no gas sampling device and few parts to be replaced

•Superior long term stability

•Fast response within 4 seconds – suited to combustible gas monitoring and control in converter furnaces

•Tolerant to high temperature and high dust concentration

•Low power consumption

•Compliant with RoHS directive (2011/65/EU)

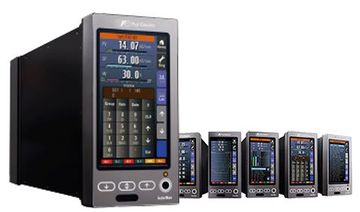

 Fully programmable multi-function PID controller

The SC 100 Series is a fully programmable multi-function PID controller with a highly visible color graphic 4.3“ TFT, 256 colors LCD display. The controller has an intuitive touch panel, advanced computation and sequential control functions.

Fully programmable multi-function PID controller

 The SC 110 Series is a fully programmable multi-function PID controller with a highly visible color graphic 4.3“ TFT, 256 colors LCD display. The controller has an intuitive touch panel, advanced computation and sequential control functions.

 Fully programmable multi-function PID controller

 The SC 200 Series is a fully programmable multi-function PID controller with a highly visible color graphic 4.3“ TFT, 256 colors LCD display. The controller has an intuitive touch panel, advanced computation and sequential control functions.
